R-Smart1010

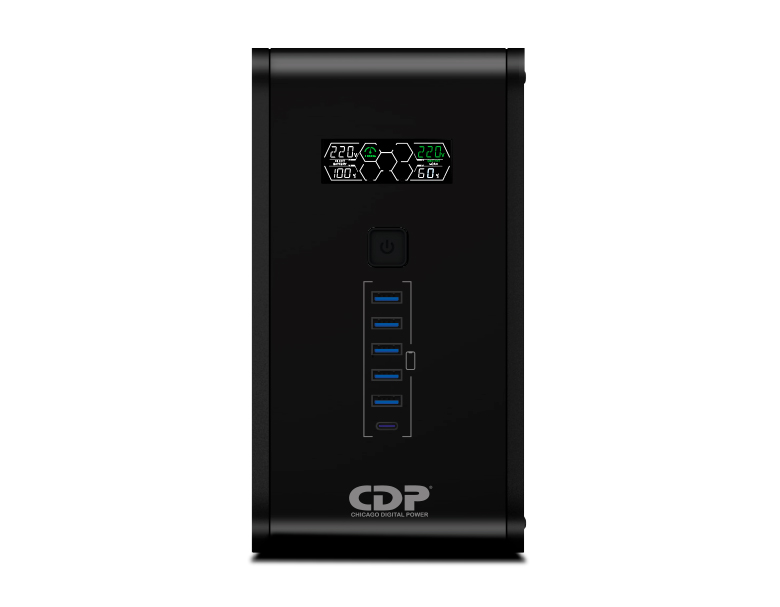

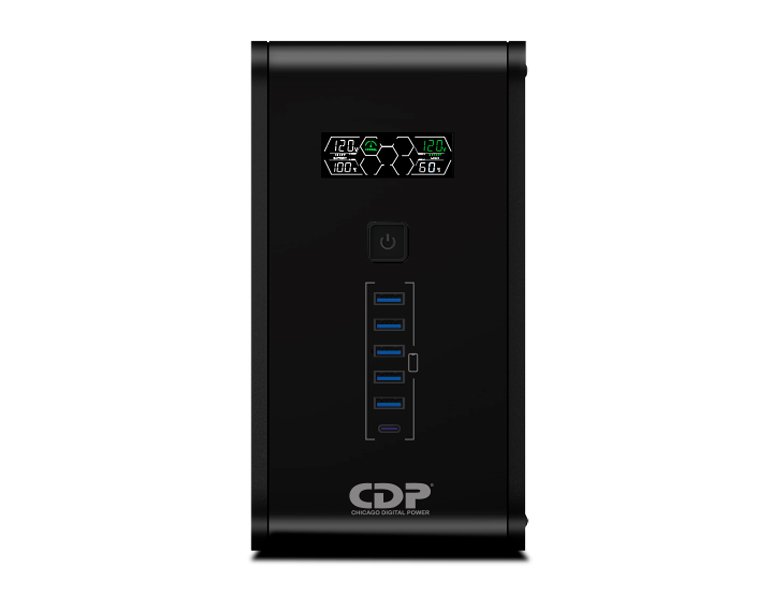

1000VA Line Interactive UPS for home/office. Internal Sealed lead acid batteries, voltage regulator, surge suppressor and bypass outlets for larger loads. Provides continuous power to WIFI routers, alarm systems and computing equipment. Larger capacity models in tower offer advanced LCD display that is interactive and illustrates function such as battery levels, % of load, % of batteries, input voltage, output voltage, HZ. Web interfaces allow local and remote monitoring. Audible alarms indicate operation and battery levels. Certified by regulatory agencies NOM, ISO9001-2015, ISO14001, RETIE.

* The appearance and number of contacts of the R-Smart 751/1010 may vary depending on the region / country.
* Product also available in 220V labeled with (i). Download the catalog and user manual.
Quick Specs
Capacity 1000VA / 500W
Waveform Simulated sinusoidal wave
Weight 5.6Kg /4.25Kg*
Protection RJ-45/11 data line, AC thermomagnetic breaker (Line mode); Electronic Circuits (Backup Mode)
Input connector 40 minutes approx.

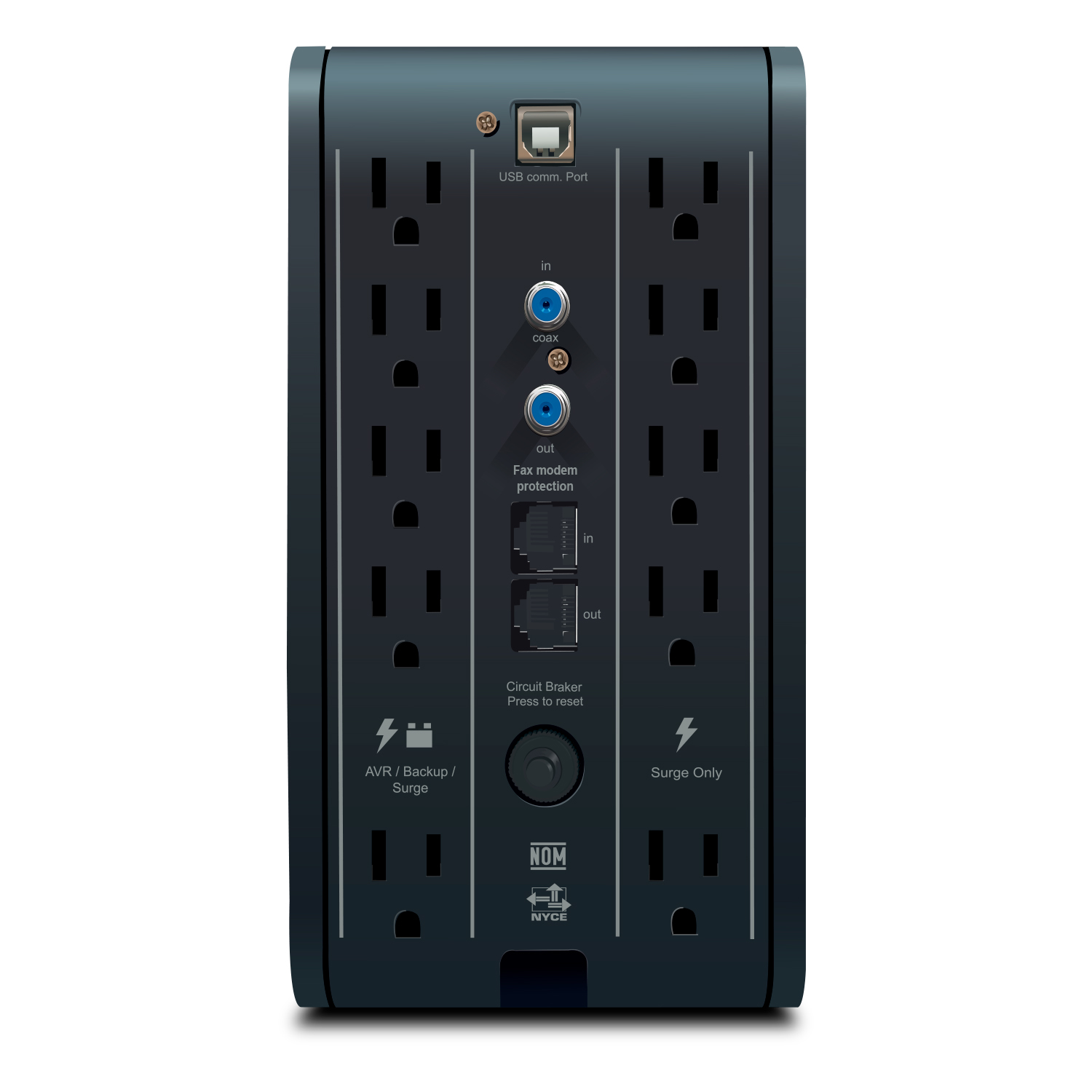

Output Type / Number 5 NEMA 5-15R with AVR regulation and battery backup + 5 NEMA 5-15R with surge suppression / 4 with AVR regulation and battery backup + 2 with surge suppression*
Voltage 120Vca
Protection from voltage spikes 560 Joules
Type / Quantity of batteries 12VDC 12V/9AH
Dimensions 110 x 210 x 230 mm / 287 x 100 x 142 mm* (Length x Height x Depth)
Software Supports Windows 98 / NT / 2000 / Me / XP / 2003 / Vista / 7/8/10)
Certifications ISO 9001, ISO 14001, RETIE and NOM
R-Smart 751-1010

Backup time (Minutes)
Model R-SMART1010
Load (W)

Max Power (W)

500

Autonomy (Min.)

14.094

CONSIDERATIONS

The graph offers an indicative estimate, and is not a binding result. The performance of the batteries depends on the temperature conditions and life time.
