| Capacity | 1000VA/500W |
| Battery Type | Lead Acid |
| Power Factor | 0.6 |
| Waveform | PWM |
| Protection | Overload, Discharge |
| Input Voltage Range | 85 - 145 VCA 120 VCA -29% +21% |
| Recharge Time to 90% | 4 Hrs |
| Input connector | Nema 5-15P |
| Backup time at full load | 4 Min at full load |
| Transfer time | 2-4ms |

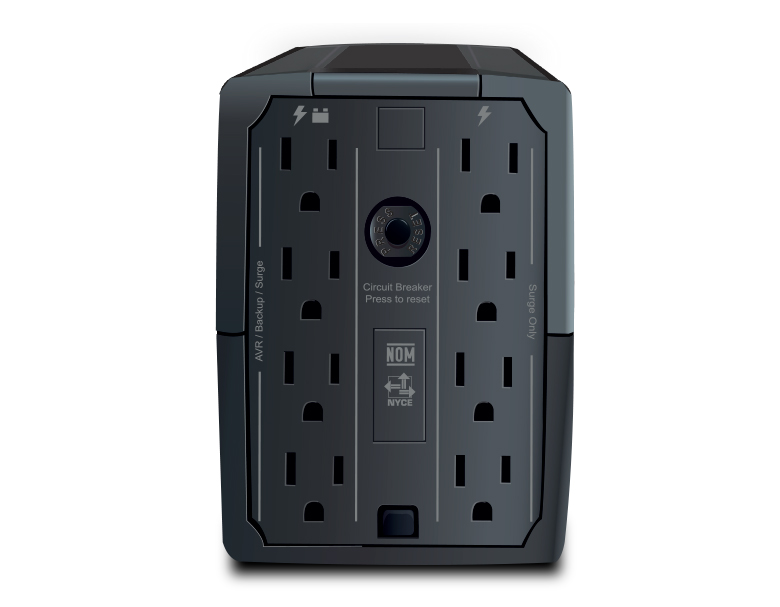

| Output Type / Number | 8 Outlets (Nema 5-15R): 4 battery backup & surge protected outlets, 4 surge protected outlets |
| Voltage | 120 Vac |
| Design technology | Line Interactive |
| Phase | Single Phase |
| Current Crest | 3:1 |
| Harmonic distortion | <3% |
| Protection from voltage spikes | 300 Joules |
| Frequency | 50/60Hz (auto-sensing) |
| Type / Quantity of batteries | 1 Pc 12 Vdc 9 AH |
| Software | UPSilon |
| Certifications | NOM |
| Power Cord length | 1 M |
| Output Voltage regulation | 120 VCA +/- 10% |
| Indicators Type | LED |
| Backup time at half load | 8 Min at half load |
| Capacity Range | 10 -500W |
| Wh Capacity | 108 |
| UPS Topology | Line Interactive |
| VA Capacity | 1000VA/500W |
| Battery Technology | Sealed lead acid |
| Form Factor | tower |
