UPO11-2RT

CDP UPO11-2RT 2000VA/1800W Power Factor 0.9, Single Phase, Double Convertion Online UPS 2U 19" Rack or , Tower from factor, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, Multifunction LCD, 120 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	2000VA/1800W
Input Voltage Range	60-150 Vac

Feature	Specification
Capacity	2000VA/1800W
Battery Type	Lead Acid
Power Factor	0.9
Waveform	sinewave
Protection	Overload, Short circuit, Autorun, surge protect.
AC / DC efficiency	90%
Input Voltage Range	60-150 Vac
Recharge Time to 90%	4 Hrs
Input connector	Nema 5-20P
Backup time at full load	5 min
Transfer time	0 ms

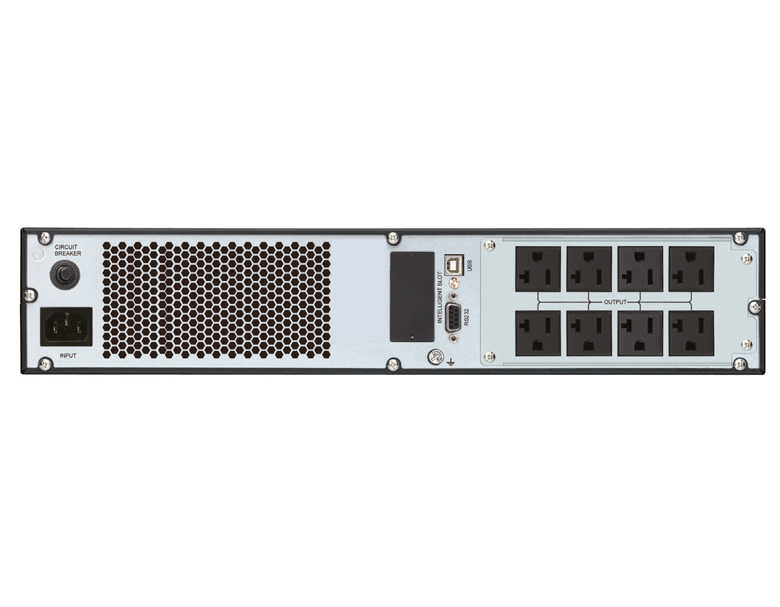

Output Type / Number	8 Outlets Nema 5-15R
Voltage	120 Vac
Design technology	Online Double Convertion
Phase	Single Phase
Current Crest	3:1
Harmonic distortion	</=3THD
Protection from voltage spikes	844 Joules
Frequency	50/60Hz (auto-sensing)
Interface (Ports of communication)	USB / Serial
Accessories	Cable USB/Manual/Software
Type / Quantity of batteries	4 pcs 12vcd 7 Ah
Cabinet with batteries (LxHxD)mm	(444x88x510)mm
Software	Software
Power Cord length	1.20mt
Output Voltage regulation	120 Vac +/- 1%
Indicators Type	LCD
Backup time at half load	13 min
Capacity Range	10 -1800W
Wh Capacity	336
UPS Topology	Online Double Convertion
VA Capacity	2000VA/1800W
Battery Technology	Sealed lead acid
Form Factor	rack / tower
