R-UPR508

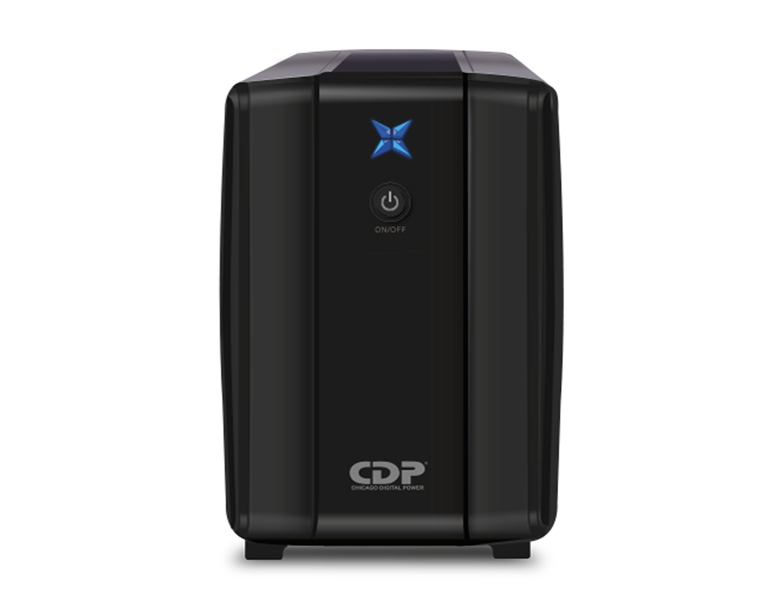

CDP R-UPR508 500VA/250W Line Interactive Battery Backup Uninterruptible Power Supply (UPS), Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations and preserve safe power conditions without using battery, 8 Outlets (Nema 5-15R): 4 battery backup & surge protected outlets, 4 surge protected outlets, surge protection up to 300 Joules, 120 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	500VA/250W
Input Voltage Range	85 - 145 VCA 120 VCA -29% +21%
Certifications	NOM

Feature	Specification
Capacity	500VA/250W
Battery Type	Lead Acid
Power Factor	0.6
Waveform	PWM
Protection	Overload, TVSS, 6A thermomagnetic minibreaker resettable
Input Voltage Range	85 - 145 VCA 120 VCA -29% +21%
Recharge Time to 90%	4 Hrs
Input connector	Nema 5-15P
Backup time at full load	4 Min at full load
Transfer time	2-4ms
Output Type / Number	10 Outlets (Nema 5-15R): 5 battery backup & surge protected outlets, 5 surge protected outlets
Voltage	120 Vac
Design technology	Line Interactive
Phase	Single Phase
Current Crest	3:1
Harmonic distortion	<3%
Protection from voltage spikes	560 Joules
Frequency	50/60Hz (auto-sensing)
Type / Quantity of batteries	1 pc 12 Vdc 4.5AH
Certifications	NOM
Power Cord length	1 M
Output Voltage regulation	120 VCA +/- 10%
Indicators Type	LED
Backup time at half load	8 Min at half load
Capacity Range	10 -250W
Wh Capacity	54
UPS Topology	Line Interactive
VA Capacity	500VA/250W
Battery Technology	Sealed lead acid
Form Factor	tower
